V-Series

Off-the-Shelf Rack Cases

Image related to Pelican products and manufacturing

Off-the-Shelf Industry-Standard Square-Hole Rack Cases

Manufactured to your specifications

V-Series cases utilise a full-boxed 19-inch steel rack with an industry-standard square-hole pattern, so hanging electronics with tab mounts is a snap. Just attach the clip nut onto a square hole with your choice of 10-32 Imperial or M6 Metric clip-nuts.

Now you can get professional-grade rack-mount cases in days instead of weeks. Peli-Hardigg maintains inventory on both coasts, reducing freight costs and transit times.

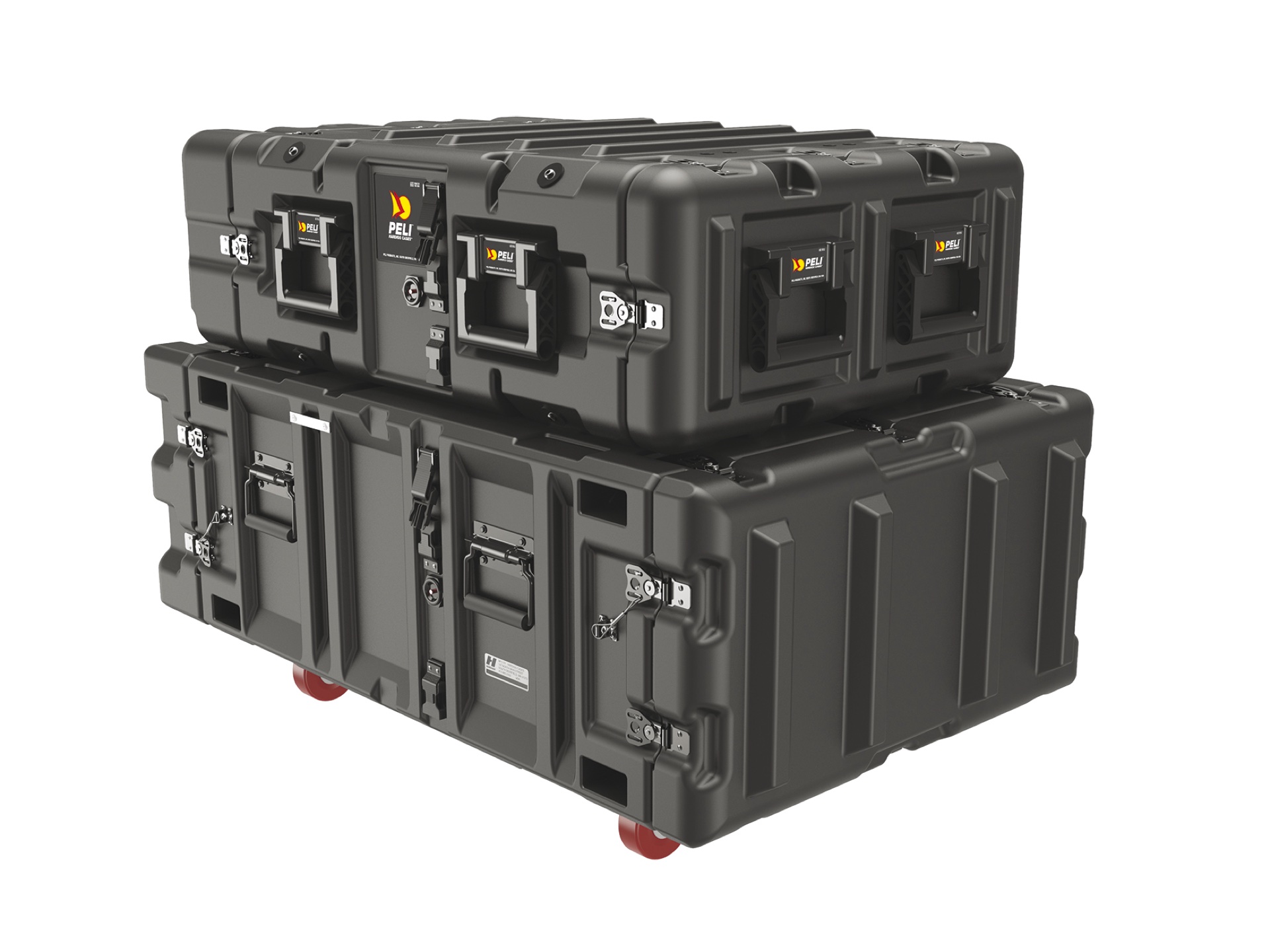

33-inch Classic-V Rack Mount Case is a smooth surface case with a 19-inch wide and 33-inch deep EIA (IEC 60297) standard rack.

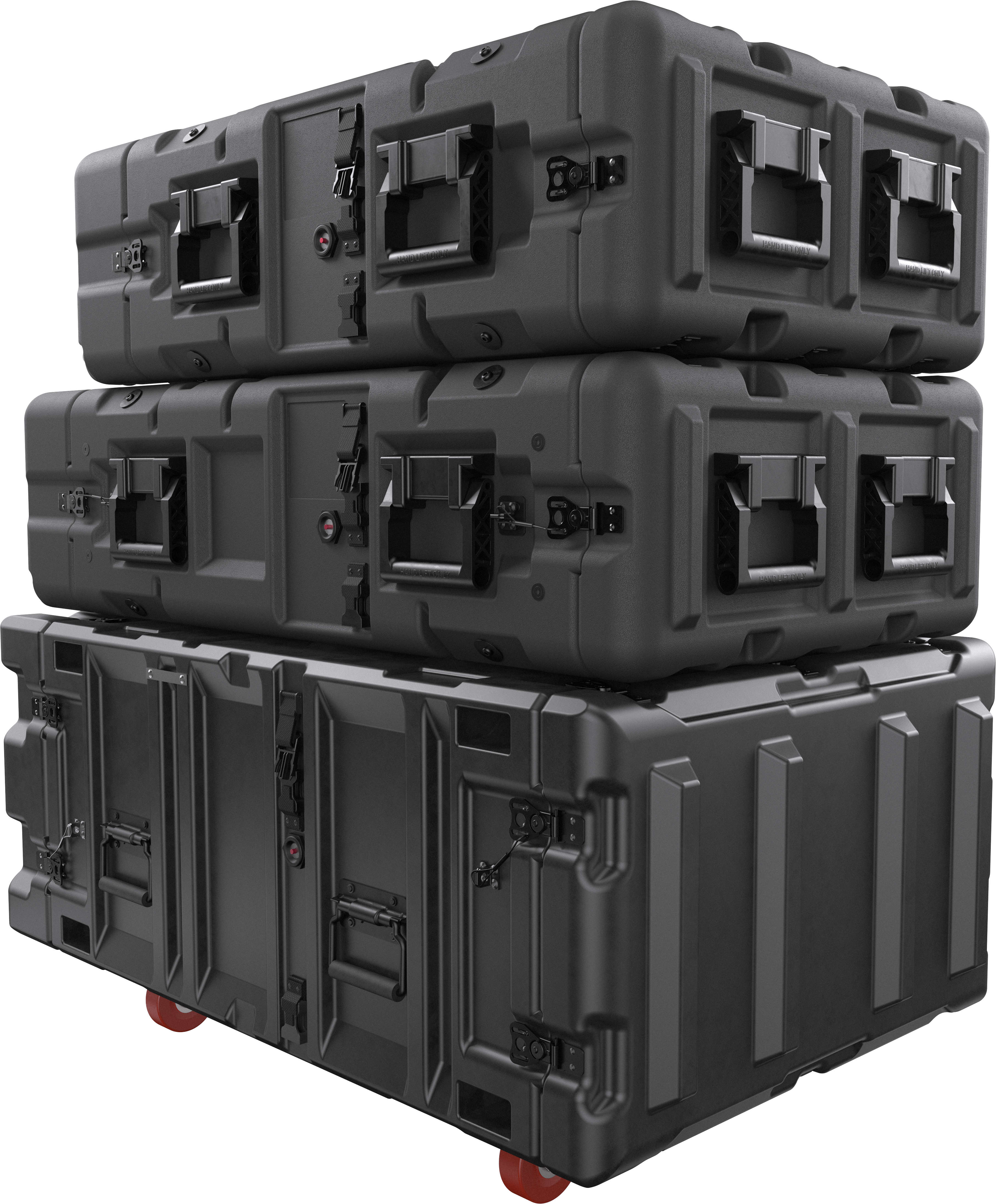

24-inch Super-V Rack Mount Case is a smooth surface case with a 19-inch wide and 24-inch deep EIA (IEC 60297) standard rack.

Specs

Sizes
33" Classic-V:
  • 3U, 4U, 5U, 7U, and 9U
 24" Super-V:
  • 3U, 4U, 5U, 7U, 9U, 11U and 14U
Payload
33" Classic-V:
  • 3U, 4U, and 5U are 36.3 - 45.4 kg.
  • 7U and 9U are 45.4 - 77.1 kg.
 24" Super-V:
  • 3U, 4U, and 5U are 36.3 - 45.4 kg.
  • 7U, 9U, 11U, 14U are 45.4 - 77.1 kg.
Sway Space
33" Classic-V:
  • 35 mm
 24" Super-V:
  • 25 mm
Base Features
Colour: Black Zinc-Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB) Pressure Relief Valve and Closed-Loop Gasket Lid Hangers and Coupling Catches Steel Square-Hole Rack Frame Moulded-in Stacking Ribs Universal Cage Nut Kit with #10-32 UNF and M6 Metric cage nuts Black Stainless-Steel Handles (33" Classic-V) Comfort-Grip Plastic Handles (24" Super-V)

Shock & Vibration System

Wall-Mounted Cylindrical shocks on V-Rack cases are attached directly to the case wall and isolate equipment from vibration as well as impact forces. This shock-mount design is used for lower payload weight applications.

Applications

  • Military Deployment
  • Professional A/V
  • Music and Entertainment Industry
  • Small Office Infrastructure
  • Mobile Video/Photography
  • News Reporting
  • Prosumer/Commercial Drone Control
  • HDD or Connected Server for App/Game Development

Customisation

V-Series cases are an Off-the-Shelf product, in stock and ready to ship.
Image related to Pelican products and manufacturing

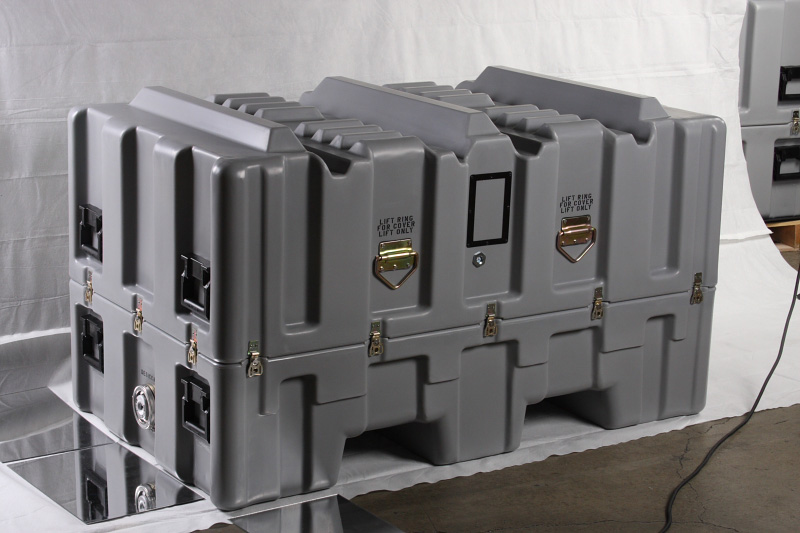

Custom Engineered Protection

Manufactured to your specifications

When projects or equipment require specialised protection, work with our experienced design engineers, testing labs, and a team of dedicated experts to develop a Peli Custom Engineered Solution.

V-Series Rack Sizing Options

U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
3U SUPER-V-3U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 50 lbs (22.7 kg)
3U CLASSIC-V-3U 33.00"

(83.82 cm)

 2.50"

(6.35 cm)

 5.25"

(13.34 cm)

 51 lbs (23.1 kg)
3U SUPER-V-3U-30 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 54 lbs (24.5 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
4U SUPER-V-4U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 53 lbs (24 kg)
4U CLASSIC-V-4U 33.00"

(83.82 cm)

 2.50"

(6.35 cm)

 5.25"

(13.34 cm)

 54 lbs (24.5 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
5U SUPER-V-5U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 55 lbs (25 kg)
5U CLASSIC-V-5U 33.00"

(83.82 cm)

 2.50"

(6.35 cm)

 5.25"

(13.34 cm)

 56 lbs (25.4 kg)
5U SUPER-V-5U-30 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 59 lbs (26.8 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
7U SUPER-V-7U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 60 lbs (27.2 kg)
7U CLASSIC-V-7U 33.00"

(83.82 cm)

 2.50"

(6.35 cm)

 5.25"

(13.34 cm)

 65 lbs (29.5 kg)
7U SUPER-V-7U-30 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 65 lbs (29.5 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
9U SUPER-V-9U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 64 lbs (29 kg)
9U CLASSIC-V-9U 33.00"

(83.82 cm)

 2.50"

(6.35 cm)

 5.25"

(13.34 cm)

 72 lbs (32.7 kg)
9U SUPER-V-9U-30 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 69 lbs (31.3 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
11U SUPER-V-11U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 69 lbs (31.3 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
14U SUPER-V-14U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 74 lbs (33.6 kg)
