SuperMAC

Rack-Mount Case in a Smaller Form Factor

Image related to Pelican products and manufacturing

Space-efficient Shock & Vibration Protection

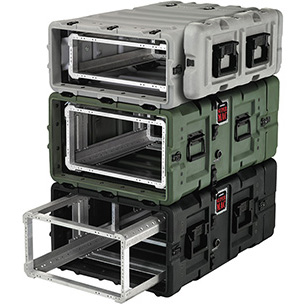

The SuperMAC case is a smooth surface case with a 19-inch wide and 24-inch deep EIA (IEC 60297) standard rack. It is ideal when you need vibration and shock protection for sensitive electronic equipment but don't have enough space for a Classic Rack Case.

The SuperMAC case is our most compact container with the option of a Lock 'N Load removable rack. The case strategically uses every inch of space, allowing ample room for wiring and equipment integration - all while being able to withstand up to 70 G's. The optional removable rack system slides open as easily as a file drawer, for full access to equipment.

Specs

Sizes
24-inch:
  • 3U, 4U, 5U, 7U, 9U, 11U and 14U
 30-inch:
  • 3U, 5U, 7U, 9U
Fragility Level
40 - 70 G’s
Payload
11.3 kg - 45.4 kg 56.7 kg - 90.7 kg
Sway Space
25mm sway space for the ability to decelerate shock
Base Features
Colour: Grey (133) Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB) Plastic Comfort-Grip Handles Heavy-Duty Reinforced Aluminium Rack Frame Eight (8) Plastic Comfort Grip Handles on front and back lids and on each side of the case body Heavy-Duty Reinforced Extruded Aluminium Rack Frame with patented "Dog Ear" reinforced corners Lid Hangers Mould-In Edge Casters on 127 mm Lid Tapped Standard (SAE) or Metric (M6)

Shock & Vibration System

Shock Isolation Mounts with an Extruded Aluminum tapped rack frame with our "Dog Ear" corner and our heavy-duty rubber boot shock that is inserted into the case body at the corners to provide a flexible, shock absorbing attachment for the rack frame. Frame can be tapped Standard (SAE) or Metric (M6).

Applications

  • Military Rapid Deployment
  • Field-Deployed Equipment
  • Sheltered Applications
  • Control Consoles and Panels
  • Radar and Microwave Antennas
  • Solid-State Circuit Electronics
  • Radio, TV and Communications Equipment

Customisation

SuperMAC™ cases are fully configurable and made to order using the list of options. They can also be customised by our Technical Sales solution team. Contact us for a completely customised protection solution.

Peli-Hardigg & Rack-Mount Cases

Configuration Options

Configure your case for your exact needs. Configuration options include casters, document holders, humidity indicator, bash plates to prevent forklift puncture and more.

Available Case Colours

Black Carbon Steel (HNB)

Stainless Steel Black (SSB)

Comfort Grip Plastic

Stainless Steel

Closed Gasket with PRV

Humidity Indicator

Caster Storage in Lid

Bottom Casters

Lockable Catch

Card Holder

ID Plate

Front Label

ATA/STD Labels

Custom Stenciling

Lifting Rings/Tie Down Rings

Sliding Drawers

SuperMAC Rack Sizing Options

U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
3U SMAC2109-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 52 lbs (23.6 kg)
3U SMAC2109-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 50 lbs (22.7 kg)
3U SMAC2109-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 48 lbs (21.8 kg)
3U SMAC2109-02-35-02 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 52 lbs (23.6 kg)
3U SMAC2109-02-35-05W 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 54 lbs (24.5 kg)
3U SMAC2109-05-35-05W 30.00"

(76.2 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 56 lbs (25.4 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
4U SMAC2111-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 53 lbs (24 kg)
4U SMAC2111-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 51 lbs (23.1 kg)
4U SMAC2111-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 55 lbs (25 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
5U SMAC2112-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 53 lbs (24 kg)
5U SMAC2112-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 55 lbs (25 kg)
5U SMAC2112-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 57 lbs (25.9 kg)
5U SMAC2112-02-35-02 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 57 lbs (25.9 kg)
5U SMAC2112-02-35-05W 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 59 lbs (26.8 kg)
5U SMAC2112-05-35-05W 30.00"

(76.2 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 61 lbs (27.7 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
7U SMAC2116-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 57 lbs (25.9 kg)
7U SMAC2116-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 60 lbs (27.2 kg)
7U SMAC2116-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 62 lbs (28.1 kg)
7U SMAC2116-02-35-02 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 62 lbs (28.1 kg)
7U SMAC2116-02-35-05W 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 65 lbs (29.5 kg)
7U SMAC2116-05-35-05W 30.00"

(76.2 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 67 lbs (30.4 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
9U SMAC2119-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 61 lbs (27.7 kg)
9U SMAC2119-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 64 lbs (29 kg)
9U SMAC2119-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 66 lbs (29.9 kg)
9U SMAC2119-02-35-02 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 66 lbs (29.9 kg)
9U SMAC2119-02-35-05W 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 69 lbs (31.3 kg)
9U SMAC2119-05-35-05W 30.00"

(76.2 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 71 lbs (32.2 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
11U SMAC2122-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 66 lbs (29.9 kg)
11U SMAC2122-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 69 lbs (31.3 kg)
11U SMAC2122-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 71 lbs (32.2 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
14U SMAC2128-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 71 lbs (32.2 kg)
14U SMAC2128-02-29-05W 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 74 lbs (33.6 kg)
14U SMAC2128-05-29-05W 24.00"

(60.96 cm)

 5.20"

(13.21 cm)

 5.20"

(13.21 cm)

 77 lbs (34.9 kg)
