ProRack

Lightweight, Space-efficient EIA Standard Rack Cases

Image related to Pelican products and manufacturing

Lightweight Case for Protection from Rain, Dust, and Impact

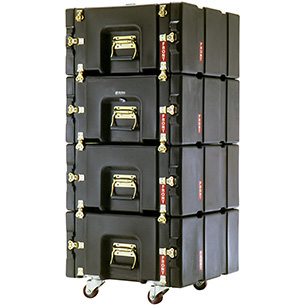

The ProRack case is a smooth roto moulded case with a 19-inch wide and 18-inch deep EIA (IEC 60297) standard rack.

ProRack cases are the ideal option when you need a lightweight, space-efficient, front- and rear-opening container, without a shock mounted system. Add accessories such as coupling catches for locking stability, removable casters, or extra threaded rack clips to suit your exact needs.

ProRack cases are the toughest small case available for basic protection from rain, immersion, dust, and impact.

Specs

Sizes
4U, 6U, 8U, 10U, and 14U
Fragility Level
80 - 120 G’s
Payload
Up to 34 kg.
Sway Space
No sway space
Base Features
Colour: Black (032) Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB) Two (2) Plastic Comfort Grip Handles, one on each lid Aluminium Rack Frame attached to the front opening of the case body

Shock & Vibration System

ProRack™ cases are designed without shock mounts. The rack frame is mounted directly to the case.

Applications

  • Semi-Fragile Medical Equipment
  • Radios and Amplifiers
  • Field-Deployed Test Equipment

Customisation

ProRack™ cases are fully configurable and made to order using the list of options.

Peli-Hardigg & Rack-Mount Cases

Configuration Options

Configure your case for your exact needs. Configuration options include casters, document holders, humidity indicator, bash plates to prevent forklift puncture and more.

Available Case Colours

Stainless Steel

Caster Storage in Lid

Bottom Casters

Lockable Catch

Padlock Hasp

Combination Lock

Card Holder

ID Plate

Front Label

ATA/STD Labels

Custom Stenciling

Stainless Steel Black

Lifting Rings/Tie Down Rings

Forklift Provision

Forklift Bash Plate

Custom Foam

Custom Interior

Hinged Lid

Comfort Grip Plastic

Stainless Steel

Closed Gasket with PRV

Airtight Certified

Humidity Indicator

Edge Caster

ProRack Sizing Options

U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
4U PR2008-01-18-01 18.00"

(45.72 cm)

 1.81"

(4.6 cm)

 1.81"

(4.6 cm)

 21 lbs (9.5 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
6U PR2012-01-18-01 18.00"

(45.72 cm)

 1.81"

(4.6 cm)

 1.81"

(4.6 cm)

 24 lbs (10.8 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
8U PR2015-01-18-01 18.00"

(45.72 cm)

 1.81"

(4.6 cm)

 1.81"

(4.6 cm)

 27 lbs (12.4 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
10U PR2018-01-18-01 18.00"

(45.72 cm)

 1.81"

(4.6 cm)

 1.81"

(4.6 cm)

 39 lbs (17.7 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
14U PR2026-01-18-01 18.00"

(45.72 cm)

 1.81"

(4.6 cm)

 1.81"

(4.6 cm)

 36 lbs (16.5 kg)
