MAC Rack

Heavy-Duty Case for Vibration Protection

Image related to Pelican products and manufacturing

Heavy-Duty Vibration Protection

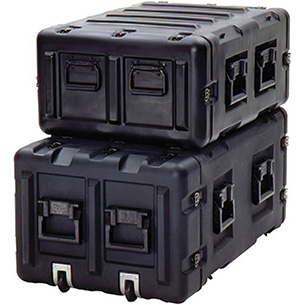

The MAC Rack case is a textured low-visibility roto moulded case with a 19-inch wide and 20-inch (51 cm) or 24-inch (61 cm) deep EIA (IEC 60297) standard rack.

Compact and lightweight, MAC Rack cases boast a smaller footprint to make the most of limited space. MAC Rack cases protect equipment with the same rotomoulded outer shell and 19-inch EIA (IEC 60297) shock mounted rack as the Classic Rack, but with a smaller sway space. MAC Rack cases are perfect for less sensitive equipment that requires protection from shock, vibration, moisture, and impact along with the advantages of a heavy-duty case.

Specs

Sizes
3U, 4U, 5U, 6U, 7U, 9U, 11U, 12U, and 14U
Fragility Level
50 - 80 G’s
Payload
8-shock mounts: 10.9 kg to 45.4 kg 16-shock mounts: 45.4 kg to 90.7 kg
Sway Space
21mm sway for the ability to decelerate shock
Base Features
Colour: Grey (133) Zinc Cobalt Black Non-Locking Catch-and-Strike Hardware (HCB) Spring-Loaded Stainless Steel Black Handle (SSB) Plastic Comfort-Grip Handles Heavy-Duty Reinforced Aluminium Rack Frame Edge Casters (on cases with 5-inch Rear Lids only) Mould-In Edge Casters on 127 mm Lid Tapped Standard (SAE) or Metric (M6) Standard Labelling

Shock & Vibration System

Cylindrical Shock Mounts installed on a strong light-weight extruded aluminum rack frame with a "Dog Ear" corner. Shock mounts attach directly to a moulded-in shoulder on the body of the case. Frame can be tapped Standard (SAE) or Metric (M6).

Applications

  • Field-Deployed Equipment
  • Sheltered Applications
  • Control Consoles and Panels
  • Radar and Microwave Antennas
  • Solid-State Circuit Electronics
  • Radio, TV and Communications Equipment

Customisation

MAC Rack cases are fully configurable and made to order. They can also be customised by our Technical Sales solution team. Contact us for a completely customised protection solution.

Peli-Hardigg & Rack-Mount Cases

Configuration Options

Configure your case for your exact needs. Configuration options include casters, document holders, humidity indicator, bash plates to prevent forklift puncture and more.

Available Case Colours

Black Carbon Steel (HNB)

Stainless Steel Black (SSB)

Comfort Grip Plastic

Stainless Steel

Closed Gasket with PRV

Humidity Indicator

Caster Storage in Lid

Bottom Casters

Lockable Catch

Card Holder

ID Plate

Front Label

ATA/STD Labels

Custom Stenciling

Lifting Rings/Tie Down Rings

Sliding Drawers

MAC Rack Sizing Options

U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
3U MR1907-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 31 lbs (14.1 kg)
3U MR1907-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 32 lbs (14.5 kg)
3U MR1907-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 33 lbs (15 kg)
3U MR1907-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 32 lbs (14.5 kg)
3U MR1907-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 33 lbs (15 kg)
3U MR1907-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 34 lbs (15.4 kg)
3U TR1907-022505RCK01 20.00"

(50.8 cm)

 N/A

N/A

37 lbs (17 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
4U MR1909-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 33 lbs (15 kg)
4U MR1909-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 35 lbs (15.9 kg)
4U MR1909-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 36 lbs (16.3 kg)
4U MR1909-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 35 lbs (15.9 kg)
4U MR1909-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 36 lbs (16.3 kg)
4U MR1909-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 37 lbs (16.8 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
5U MR1910-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 36 lbs (16.3 kg)
5U MR1910-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 38 lbs (17.2 kg)
5U MR1910-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 39 lbs (17.7 kg)
5U MR1910-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 37 lbs (16.8 kg)
5U MR1910-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 39 lbs (17.7 kg)
5U MR1910-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 40 lbs (18.1 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
6U MR1913-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 39 lbs (17.7 kg)
6U MR1913-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 41 lbs (18.6 kg)
6U MR1913-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 42 lbs (19.1 kg)
6U MR1913-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 40 lbs (18.1 kg)
6U MR1913-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 42 lbs (19.1 kg)
6U MR1913-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 43 lbs (19.5 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
7U MR1914-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 42 lbs (19.1 kg)
7U MR1914-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 43 lbs (19.5 kg)
7U MR1914-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 44 lbs (20 kg)
7U MR1914-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 42 lbs (19.1 kg)
7U MR1914-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 44 lbs (20 kg)
7U MR1914-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 47 lbs (21.3 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
9U MR1917-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 46 lbs (20.9 kg)
9U MR1917-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 47 lbs (21.3 kg)
9U MR1917-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 48 lbs (21.8 kg)
9U MR1917-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 47 lbs (21.3 kg)
9U MR1917-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 48 lbs (21.8 kg)
9U MR1917-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 49 lbs (22.2 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
11U MR1921-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 50 lbs (22.7 kg)
11U MR1921-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 51 lbs (23.1 kg)
11U MR1921-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 52 lbs (23.6 kg)
11U MR1921-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 51 lbs (23.1 kg)
11U MR1921-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 52 lbs (23.6 kg)
11U MR1921-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 53 lbs (24 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
12U MR1923-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 52 lbs (23.6 kg)
12U MR1923-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 53 lbs (24 kg)
12U MR1923-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 54 lbs (24.5 kg)
12U MR1923-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 53 lbs (24 kg)
12U MR1923-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 54 lbs (24.5 kg)
12U MR1923-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 55 lbs (25 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
14U MR1926-02-25-02 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 56 lbs (25.4 kg)
14U MR1926-02-25-05 20.00"

(50.8 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 57 lbs (25.9 kg)
14U MR1926-05-25-05 20.00"

(50.8 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 57 lbs (25.9 kg)
14U MR1926-02-29-02 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 2.20"

(5.59 cm)

 57 lbs (25.9 kg)
14U MR1926-02-29-05 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 4.40"

(11.18 cm)

 58 lbs (26.3 kg)
14U MR1926-05-29-05 24.00"

(60.96 cm)

 4.40"

(11.18 cm)

 4.40"

(11.18 cm)

 58 lbs (26.3 kg)

Get A Quote
