Blackbox

Off-the-Shelf EIA Standard Rack Cases

Image related to Pelican products and manufacturing

Preconfigured Case in 7 Standard U Sizes

Manufactured to your specifications

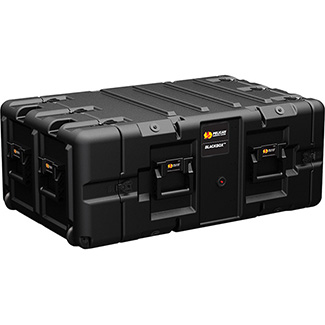

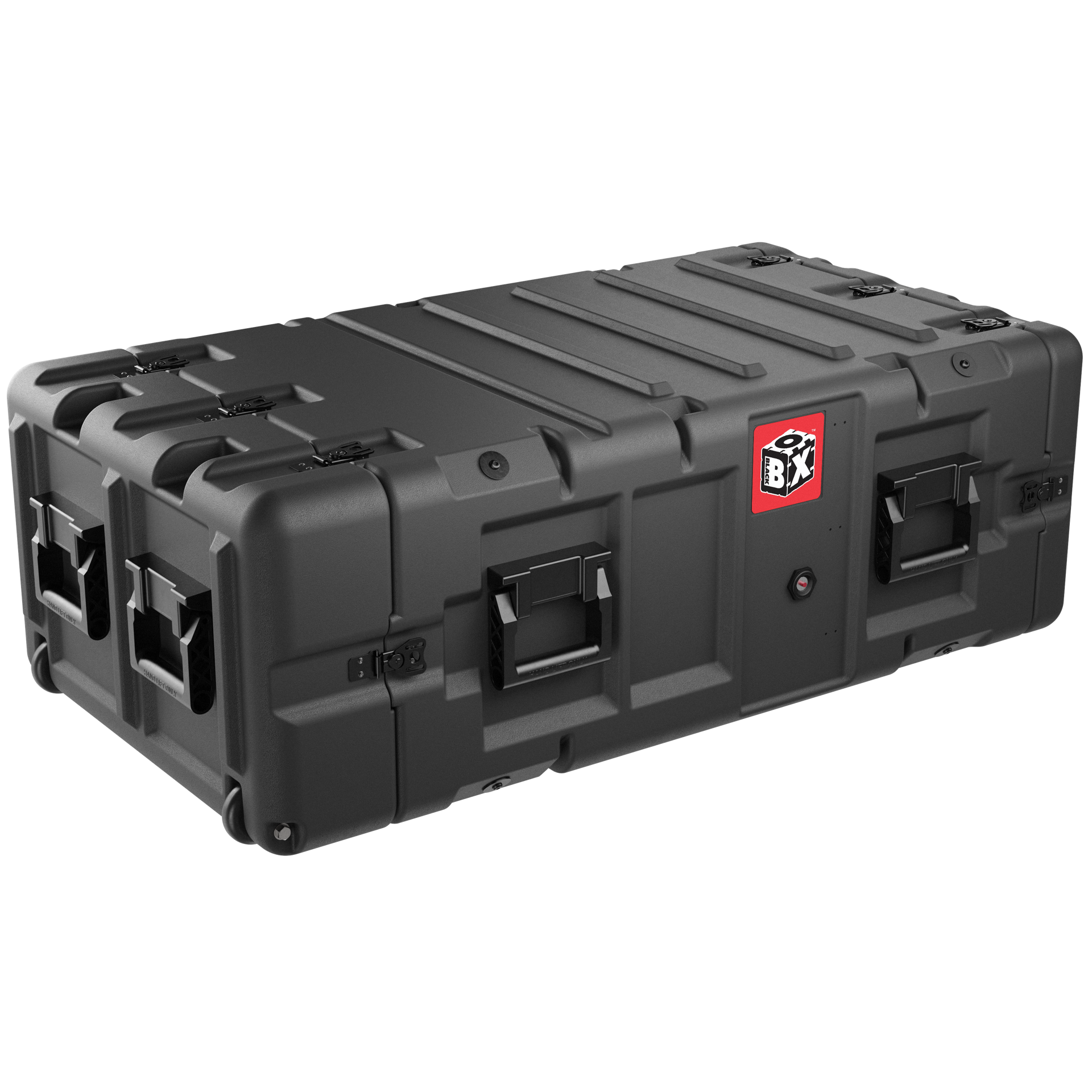

The BlackBox case is a textured off-the-shelf roto moulded case with a 19-inch wide and 24-inch deep EIA (IEC 60297) standard rack.

This lightweight, compact, and double-ended case offers light-duty protection and boasts significantly better light-duty shock performance than the competition. The use of recycled materials in the shell and a steel frame offers great value while upholding Peli-Hardigg's industry-leading standard.

A BlackBox case is ideal when you need immediate access to an Off-the-Shelf case and need a cost-effective solution without sacrificing performance.

Specs

Sizes
3U, 4U, 5U, 7U, 9U, 11U, and 14U
Fragility Level
40 – 80 G’s
Payload
9.1 - 45.4 kg
Sway Space
25.4mm sway space for the ability to decelerate shock
Base Features
Colour: Black (463) Spring Loaded Zinc Black Plated Steel Hardware (HNB) Black Carbon Steel Non-Locking Catch-and-Strike Hardware Four (4) Plastic Comfort-Grip Handles 2-inch Front Lid and 5-inch Back Lid Pressure Relief Valve Closed-Loop Gasket Steel Rack Frame Right- and Left-Side Lid Hangers Mould-In Edge Casters on 5-inch Lid

Shock & Vibration System

Cylindrical Shock Mounts installed on a light duty steel frame. Shock mounts attach directly to a moulded-in shoulder on the body of the case. Frame can be tapped Standard (SAE) or Metric (M6).

Applications

  • Audio/Video Recording and Processing Systems
  • Satellite Communication Systems
  • Radio Communication Systems
  • Seismic Data Recording Instrumentation
  • Climate Data Collection
  • Field-Deployed Amplifiers and Electronics
  • Medical or Testing Equipment Components

Customisation

BlackBox cases are an off-the-shelf product, in stock and ready to ship.
Image related to Pelican products and manufacturing

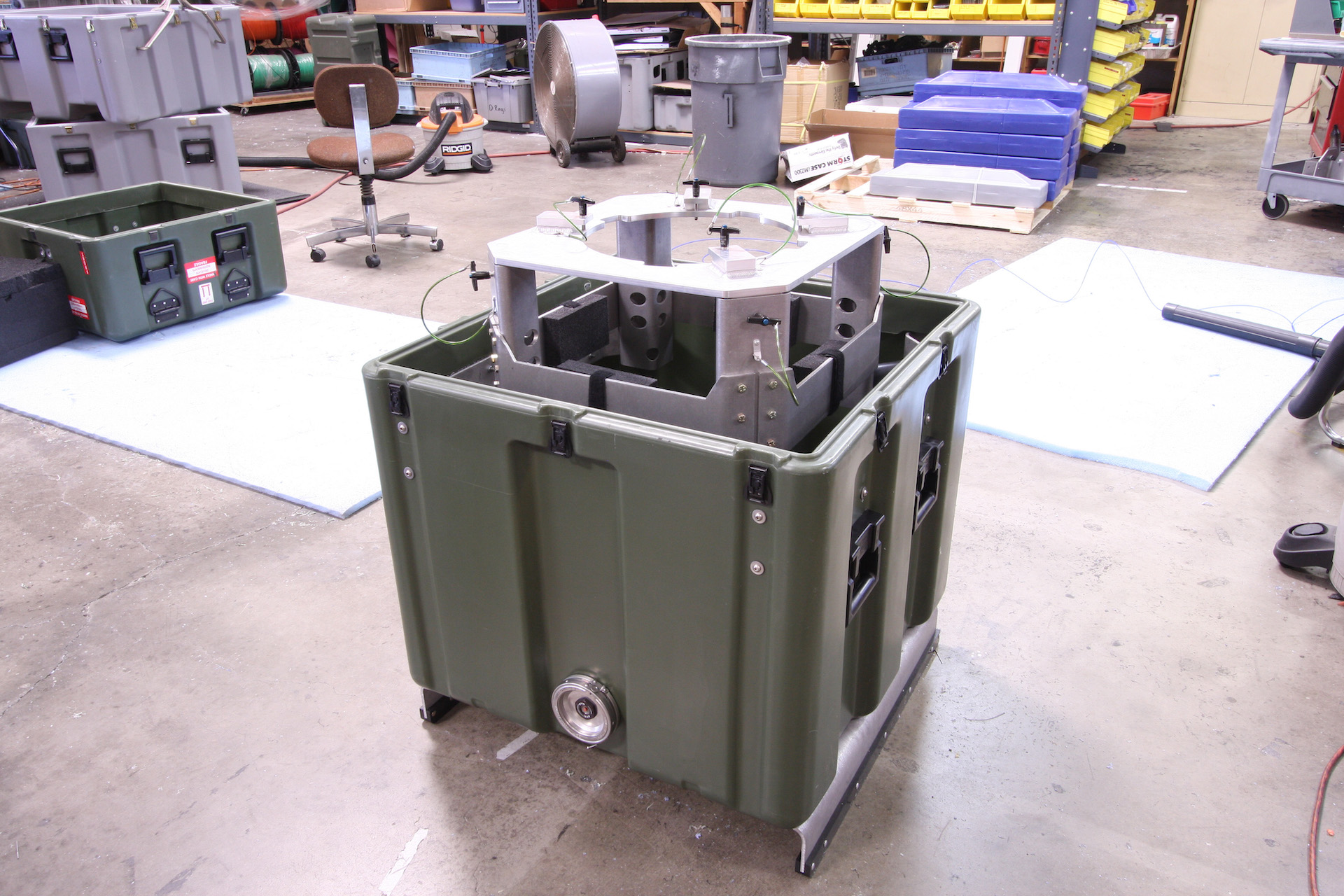

Custom Engineered Protection

Manufactured to your specifications

When projects or equipment require specialised protection, work with our experienced design engineers, testing labs, and a team of dedicated experts to develop a Peli Custom Engineered Solution.

Blackbox Rack Sizing Options

U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
3U BlackBox3U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 42 lbs (19.1 kg)
3U BlackBox30-3U 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 46 lbs (20.9 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
4U BlackBox4U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 47 lbs (21.3 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
5U BlackBox5U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 48 lbs (21.8 kg)
5U BlackBox30-5U 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 52 lbs (23.6 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
7U BlackBox7U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 51 lbs (23.1 kg)
7U BlackBox30-7U 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 56 lbs (25.4 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
9U BlackBox9U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 56 lbs (25.4 kg)
9U BlackBox30-9U 30.00"

(76.2 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 61 lbs (27.7 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
11U BlackBox11U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 60 lbs (27.2 kg)
U Size Catalogue Rack Depth Lid Depth Back Lid Depth Weight
14U BlackBox14U 24.00"

(60.96 cm)

 2.20"

(5.59 cm)

 5.20"

(13.21 cm)

 66 lbs (29.9 kg)
