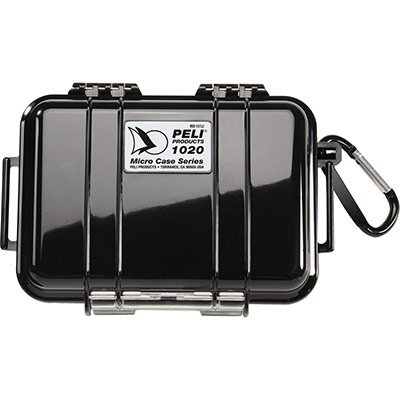

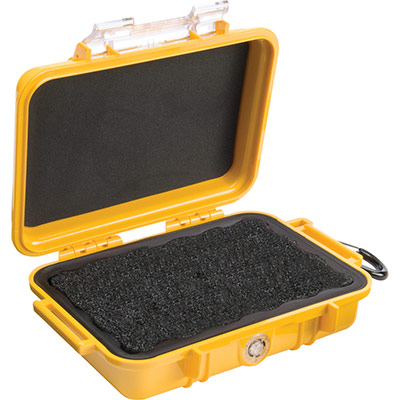

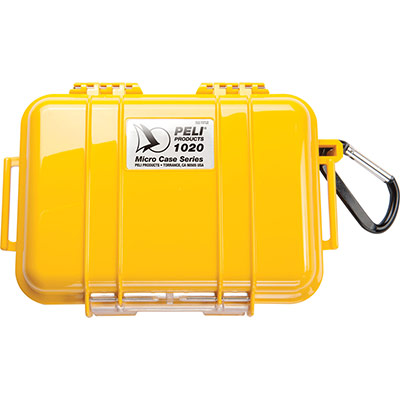

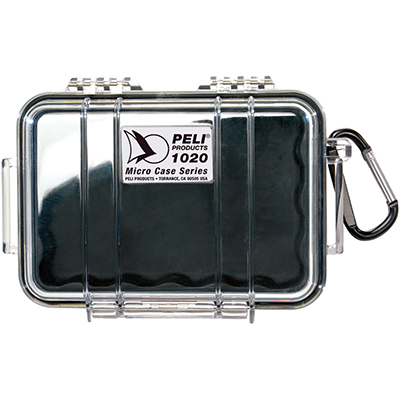

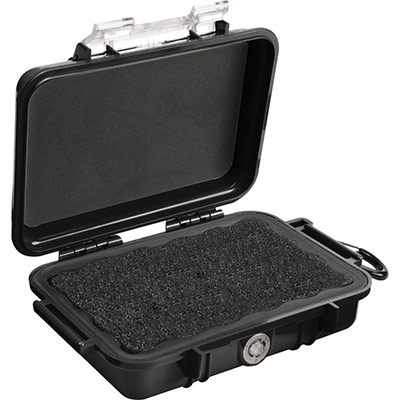

Micro Case, Black - Clear

SKU: 1020-025-100E

Color: Dusk

Commercial Quote
Product Features
  • *Case is able to be submerged under 1 meter of water for up to 30 minutes in accordance with IP67 testing parameters
  • Available in clear with color liner or solid
  • Watertight, crushproof, and dustproof
  • Rubber liner for extra protection doubles as o-ring seal
  • Easy open latch
  • Carabiner
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • Peli's legendary lifetime guarantee**
  • * Where applicable by law
  • Stainless steel hardware
  • Lifetime Guarantee of Excellence

Overview

Micro Case, Black - Clear

From small sensitive components to smartphones, protect your gear from the elements in a crushproof, watertight, & dustproof Micro Case from Pelican.

Specs

Measurements
Interior (L×W×D) - Inches
5.31 x 3.56 x 1.68 in
Interior (L×W×D) - Centimeters
13.49 x 9.04 x 4.27 cm
Exterior (L×W×D) - Inches
6.82 x 4.75 x 2.12 in
Exterior (L×W×D) - Centimeters
17.32 x 12.07 x 5.38 cm
Capacity
Lid Depth
0.69 in (1.75 cm)
Bottom Depth
0.94 in (2.39 cm)
Buoyancy
0.75 lbs
Weights
Weight With Foam
0.56 lbs (0.25 kg)
Weight No Foam
0.55 lbs (0.25 kg)
Master Pack Weight
3.96 lbs (1.8 kg)
Weight
0.53 lbs (0.24 kg)
Temperature Range
Minimum Temperature
-10°F (-23.3°C)
Maximum Temperature
199°F (92.8°C)
Materials
Body Material
Polycarbonate (PC)
Latch Material
Xylex
O Ring Material
Thermoplastic Rubber
Pins Material
Stainless Steel
Foam Material
TL - 426 4 lb. Esther
Purge Body Material
Polycarbonate (PC)
Purge Vent Material
Polyester Spun-Bond ePTFE Oleophobic
Purge O Ring Material
70 Shore Nitrile

Support

guarantee
For warranty information, see our
Guarantee of Excellence
support
For additional support,
contact us

Documents

Catalog
Micro Case IP67.pdf
