iM3220 Storm
iM3220 Storm
iM3220 Storm
iM3220 Storm Long Case

SKU: IM3220-00001

Color: Black

Configuration: No Foam

Commercial Quote
Product Features
  • Six Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Two Double-layered, Soft-grip Handles
  • Vortex™ Valve
  • Two Padlockable Hasps
  • Powerful Hinges
  • O-ring seal
  • Guaranteed For Life

Overview

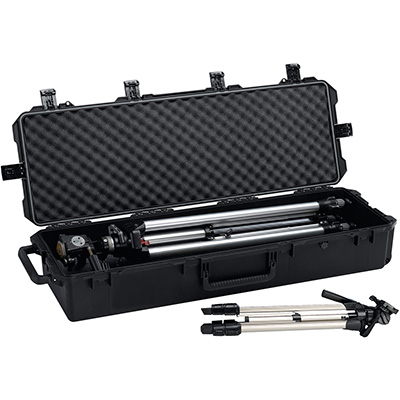

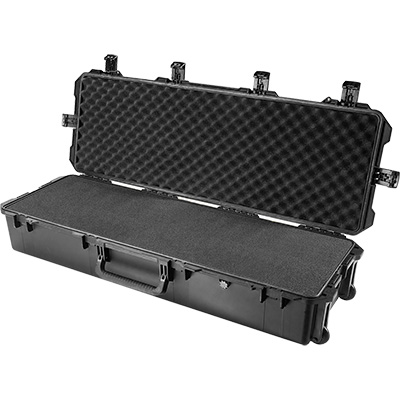

iM3220 Storm Long Case

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

Guaranteed for life, the Pelican Storm case is made in the USA and engineered using the finest components.

Specs

Measurements
Interior (L×W×D) - Inches
44.00 x 14.00 x 8.50 in
Interior (L×W×D) - Centimeters
111.76 x 35.56 x 21.59 cm
Exterior (L×W×D) - Inches
47.20 x 16.50 x 9.20 in
Exterior (L×W×D) - Centimeters
119.89 x 41.91 x 23.37 cm
Padlock Hole Diameter
0.38 in
Capacity
Lid Depth
2.00 in (5.08 cm)
Bottom Depth
6.50 in (16.51 cm)
Buoyancy
188.32 lbs
Weights
Weight With Foam
24.80 lbs (11.25 kg)
Weight No Foam
20.40 lbs (9.25 kg)
Master Pack Weight
32.00 lbs (14.51 kg)
Temperature Range
Minimum Temperature
-20°F (-28.9°C)
Maximum Temperature
140°F (60°C)
Materials
Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
Latch Alt Material
Xenoy - Polyester/Polycarbonate blend
O Ring Material
EPDM
Pins Material
Stainless Steel
Pins Alt Material
Aluminum
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Body Alt Material
Xenoy - Polyester/Polycarbonate blend
Purge Vent Material
Gortex membrane
Purge O Ring Material
Buna-N, 50-60 Durometer Shore A

Support

guarantee
For warranty information, see our
Guarantee of Excellence
support
For additional support,
contact us

Documents

Catalog
Storm IP67 Cert.pdf
