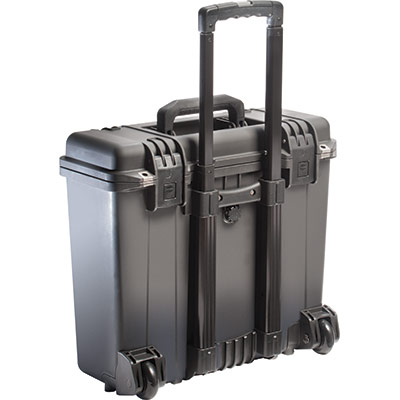

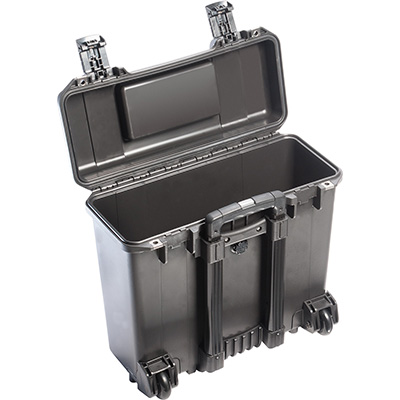

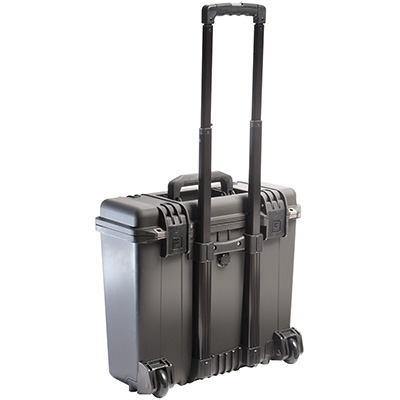

iM2435 Storm Top Loader Case

SKU: IM2435-00000

Color: Black

Configuration: No Foam

Commercial Quote
Product Features
  • Two Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Watertight, crushproof, and dustproof
  • In-line Wheels
  • Two stainless steel padlock protectors
  • Retractable extension trolley handle
  • O-ring seal
  • Guaranteed for life

Overview

iM2435 Storm Top Loader Case

The Pelican™ Storm Case™ has the same legendary DNA as our Pelican Protector Case, with one primary difference: A unique Press and Pull latch that locks automatically, but open with a light touch.

Guaranteed for life, the Pelican Storm case is made in the USA and engineered using the finest components.

Specs

Measurements
Interior (L×W×D) - Inches
17.50 x 6.50 x 15.50 in
Interior (L×W×D) - Centimeters
44.45 x 16.51 x 39.37 cm
Exterior (L×W×D) - Inches
18.63 x 9.25 x 16.50 in
Exterior (L×W×D) - Centimeters
47.32 x 23.5 x 41.91 cm
Padlock Hole Diameter
0.37 in
Capacity
Lid Depth
2.00 in (5.08 cm)
Bottom Depth
13.50 in (34.29 cm)
Buoyancy
56.70 lbs
Weights
Weight With Foam
11.15 lbs (5.06 kg)
Weight No Foam
10.00 lbs (4.54 kg)
Temperature Range
Minimum Temperature
-20°F (-28.9°C)
Maximum Temperature
140°F (60°C)
Materials
Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
Latch Alt Material
Xenoy - Polyester/Polycarbonate blend
O Ring Material
EPDM
Pins Material
Stainless Steel
Pins Alt Material
Aluminum
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Body Alt Material
Xenoy - Polyester/Polycarbonate blend
Purge Vent Material
Gortex membrane
Purge O Ring Material
Buna-N, 50-60 Durometer Shore A
