iM2275 Storm Case

SKU: IM2275-00001

Color: Black

Configuration: No Foam

Commercial Quote
Product Features
  • Two Press & Pull Latches
  • Lightweight Strong HPX® Resin
  • Watertight, crushproof, and dustproof
  • Vortex™ Valve
  • Double-layered, Soft-grip Handle
  • Two Padlockable Hasps
  • Powerful Hinges
  • Guaranteed for life

Overview

iM2275 Storm Case

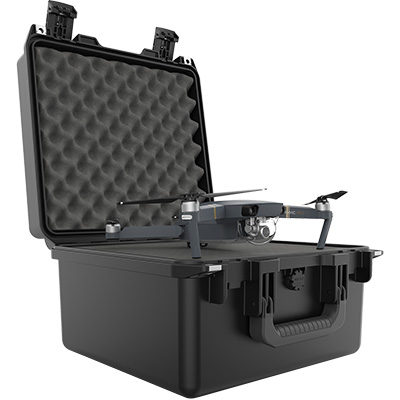

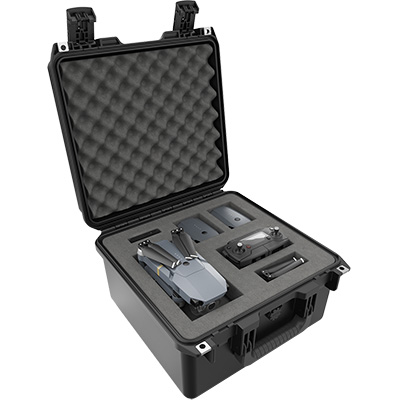

Give your gear extra space. With a deeper lid, the iM2275 is the first case in our Pelican™ Storm Case™ line that gives you more vertical space to work with for your equipment. This case gives you the freedom to configure multiple 4K cameras, diagnostic circuit readers, or a drone with accessories.

Specs

Measurements
Interior (L×W×D) - Inches
14.12 x 13.19 x 9.90 in
Interior (L×W×D) - Centimeters
35.86 x 33.5 x 25.15 cm
Exterior (L×W×D) - Inches
15.25 x 15.50 x 10.22 in
Exterior (L×W×D) - Centimeters
38.74 x 39.37 x 25.96 cm
Padlock Hole Diameter
0.37 in
Capacity
Lid Depth
3.20 in (8.13 cm)
Bottom Depth
6.30 in (16 cm)
Buoyancy
68.80 lbs
Weights
Weight With Foam
10.25 lbs (4.65 kg)
Weight No Foam
8.00 lbs (3.63 kg)
Temperature Range
Minimum Temperature
-20°F (-28.9°C)
Maximum Temperature
140°F (60°C)
Materials
Body Material
Injection Molded HPX™ high performance resin
Latch Material
Valox - Polybutylene Terephthalate (PBT)
Latch Alt Material
Xenoy - Polyester/Polycarbonate blend
O Ring Material
EPDM
Pins Material
Stainless Steel
Pins Alt Material
Aluminum
Foam Material
1.3/1.35 polyester
Purge Body Material
Valox - Polybutylene Terephthalate (PBT)
Purge Body Alt Material
Xenoy - Polyester/Polycarbonate blend
Purge Vent Material
Gortex membrane
Purge O Ring Material
Buna-N, 50-60 Durometer Shore A
